Product Description
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers details
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers supplier
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers manufacture

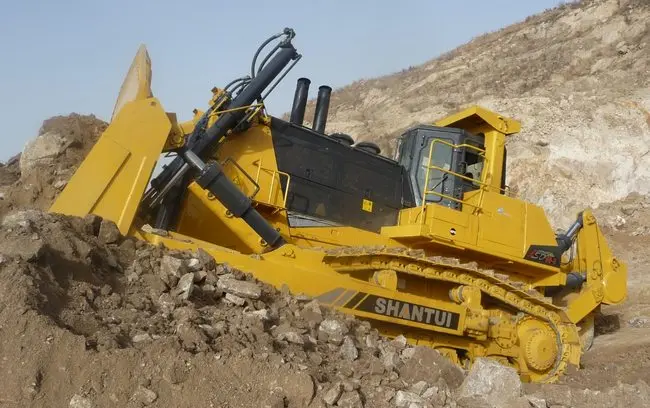

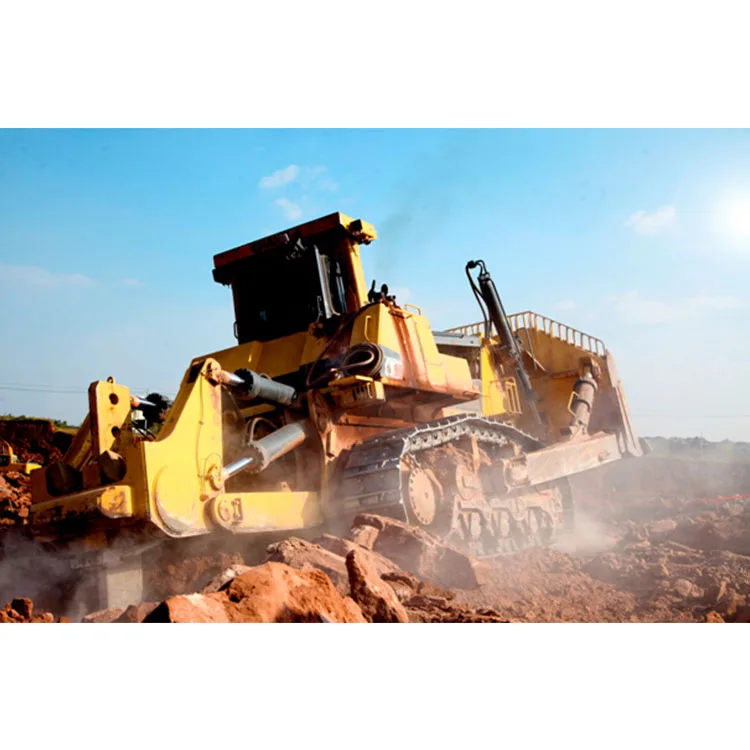

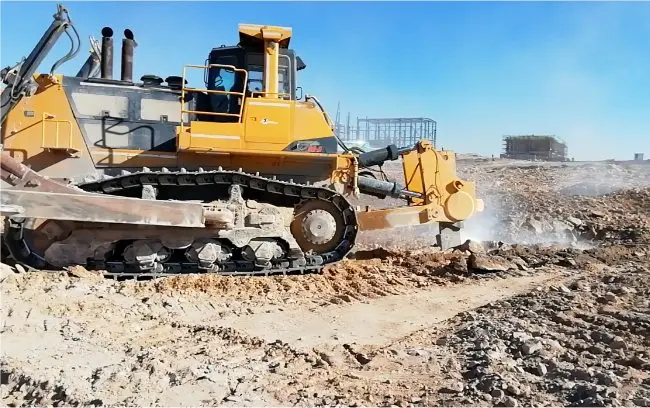

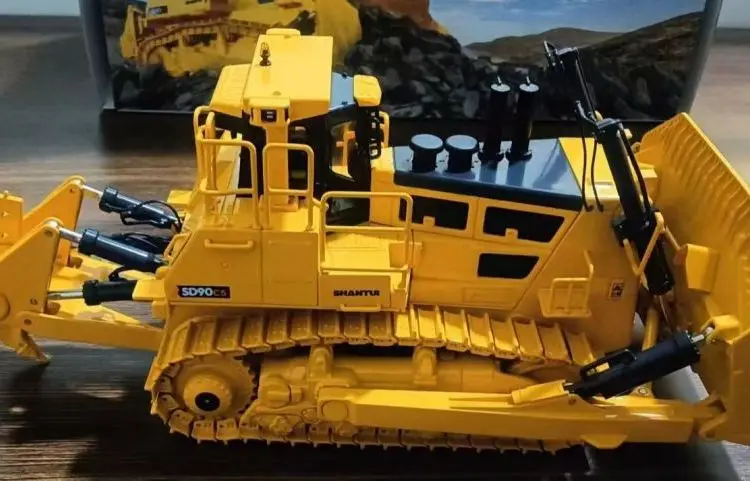

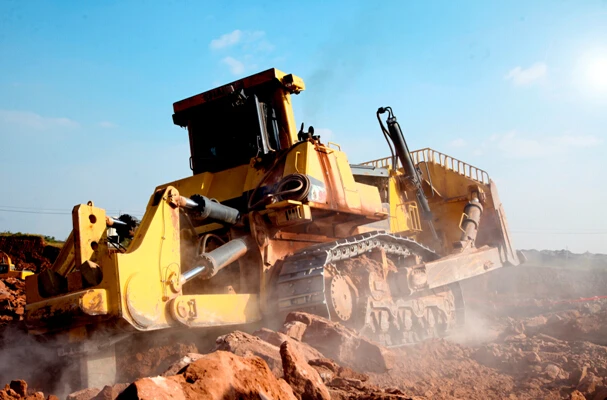

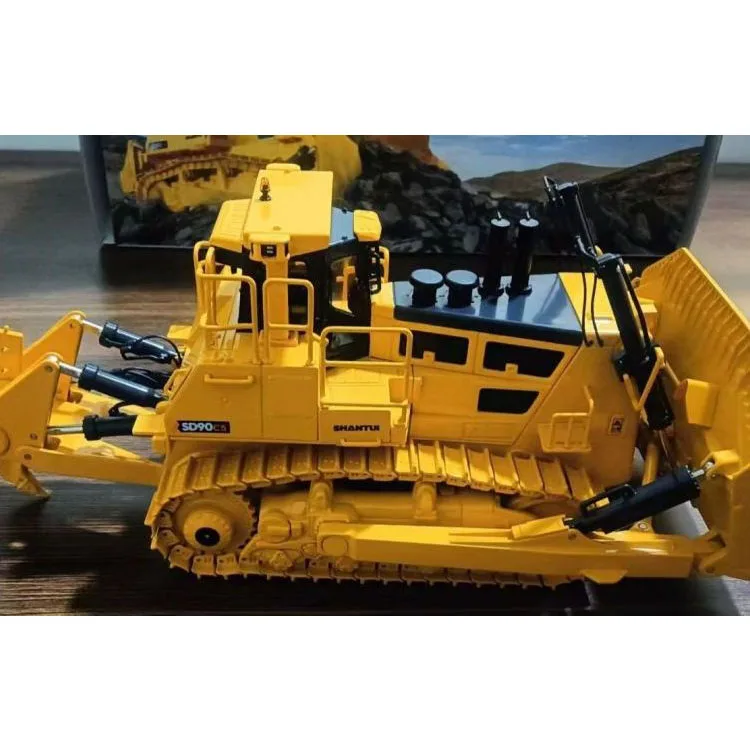

SD90-C5 RS crawler bulldozer
SD90-C5 crawler bulldozer, Through the matching optimization of power, transmission, hydraulic and electrical systems, the fuel consumption of the whole machine is low and the noise is low. The electronic control walking system reduces the operation intensity of the user, and can achieve a variety of preset operation modes to meet the needs of different operating habits; The equipment is fitted with a heavy-duty chassis and uses the elastic suspension technology of the support wheel to adapt to the harsher operating environment, which can significantly improve productivity and reduce operating costs.
Engine power
Machine weight
Engine type
708kW/2100rpm
106260kg
QST30
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers supplier
Dynamic system ● Electronically controlled engine, meet the national non-road machinery phase III emission requirements, high reliability; ● Suction temperature control fan, with reverse self-cleaning function, high efficiency and energy saving. Transmission system ● The hydraulic torque converter with locking function, the output torque can change with the load, the load adaptability is strong, the hydraulic transmission at low speed, the mechanical transmission at high speed, can save fuel 10%-15%, with high fuel economy; ● Normally closed brake, with parking brake function, can effectively prevent the vehicle from sliding on the ramp, high safety;
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers factory
Operating performance ● The walking control adopts the electronic control single handle device, which can realize the function of "hand self-integrated fingertip shift"; ● The operation of the working device adopts the pilot single-handle device, which is flexible, lightweight and comfortable, and has high reliability. Driving environment ● Ergonomic cab, large space, good vision; ● The overall seal of the cab effectively blocks noise, and the noise of the driver's ear is as low as 80 decibels, meeting the EU standard; ● High-power heating and cooling air conditioning, good cooling and heating effect, air conditioning outlet layout is more humane, more comfortable driving; ● Interior selection of rapid forming parts (top ABS+PVC blister), high-grade environmental protection, good driving experience.
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers details
Job adaptability ● Matching heavy chassis, can adapt to more severe working conditions, longer life; ● Large grounding length, large ground clearance, smooth driving, good passability, can be configured with half U-shaped shovel, U-shaped shovel; ● The support wheel adopts K-type elastic suspension, the track ground area is larger, and the working traction is larger and more stable on the uneven road surface; ● Standard high-brightness LED work lights to improve lighting capacity and make nighttime construction safer and more reliable. Easy maintenance ● Enveloping safety channel design, more safe and convenient maintenance; ● The whole machine adopts modular design, convenient disassembly, simple maintenance; ● The electric wiring harness adopts seamless bellows and splitter, with high protection level; ● Global procurement of core electrical and hydraulic components, high reliability.
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers factory
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers details
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers factory
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers supplier
Engine
Model & type
Cummins QST30,4 stroke, 12 cylinder, water-cooled, turbocharged, V, direct injection,electronic control diesel engineoling diesel
engine
Horsepower
Gross: 708kW/950HP@2100rpm; Net: 671kW/900HP@2100rpm
Number of cylinders
12-140 x 165 mm (bore x stroke)
Piston displacement
30.5 L
Operating weight
106.2 t (Ripper included)
Power transmission
system
Torque converter
3-element, 1-stage, torque converter with lockup clutch
Transmission
Planetary gear, multiple-disc clutch,hydraulically-actuated and force-lubricated,three forward and reverse.
Main drive
First class spur gear
Steering clutch
Wet, multi plate spring press, hydraulic separation,normally closed
Steering brake
Wet, multi plate spring press, hydraulic separation,normally closed
Final drive
First class spur gear, first stage planetary gear reduction
Travel speed
Gear
1st
2nd
3rd
Forward
0~3.5 km/h
0~6.3 km/h
0~10.9 km/h
Reverse
0~4.7 km/h
0~8.4 km/h
0~14.3 km/h
Undercarriage
system
Minimum turning radius
4200 mm
Gradeability
30°
Stability
35°
Track gauge
2770 mm
Ground length/Ground pressure
4520/0.147 mm/MPa
Min. ground clearance
655 mm
Number of carrier rollers
2 (each side)
Number of track rollers
7 (each side)
Number of carriers
2 (each side)
Track type
Master link, single grouser, sealed and lubricated.
Width of track shoes
710 mm
Pitch
317.5 mm
Number of track shoes
41 (each side)
Blade
Blade type
Semi-U blade
Dozing capacity
39 m 3
Blade width
5265 x 2690 mm
Maximum drop below ground of blade
1010 mm
Maximum lift height
1620 mm
Maximum tilt
1290 mm
Ripper
(Optional)
Ripper type
Single-shank ripper
Ripping depth of ripper
1670 mm
Lifting height of ripper
1300 mm
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers supplier
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers manufacture
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers details
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers manufacture
SHANGHAI MIZILONG TRADNG COMPANY is a professional large-scale supplier of alltypes of quality USED construction machinery, mainly including excavators, bulldozers, road rollers, motor graders, forklifts, concrete mixer trucks. tractor heads, dump trucks, pavers. generators, stone crushers, drilling machines, agriculture machines, soil compactors, concrete equipment and other related products. We have world famous brand including Caterpillar, Komatsu. Hitachi, Volvo, Doosan,Daewoo. Tadano. Kato. Kalmar. Terex, John Deer.JCB. Case. New Holland. XCMG. SANY. Kobelco, and many other brands. Our company is located in Shanghai city, which is a worldwide international city. We have many years of history in the field of construction machinery and other equipment and spare parts. With good working functions, our products and well-deserved reputation have won us great favor from foreign customers. Our equipment has been exported to many countries in the world. Most customers are coming from Southeast Asia. Middle East, Africa, Kazakhstan, Myanmar and some other places.
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers manufacture
China Top Brand Shantui 106t Heavy Duty SD90-C5 bull dozer used bulldozers factory
Q:How to purchase the EXCAVATOR from your company?
A:You can choose the model from our website, you can also tell your specific requirements to our sales manger and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract
Q:These machines are original?
A:Yes, our machine are all original. If you are interested in, we will send some images and plates to you.
Q:How to ensure product quality?
A:Firstly,our company has the international quality system certification. Secondly, Made in China Group has conducted field certification of our factory. Finally, You can entrust third party individuals or organizations to inspect our products before delivery.
Q:How to visit your factory?
A:After you arrive at China, you can fly to Shanghai. Shanghai airport is located in SHANGHAI City. We will contact you and our company driver will pick you up at Shanghai airport and take you to our factory by car.
Q:Do you have other services?
A:Our company's aim is to meet your satisfaction, our services including best price, shipping&packaging, long-time warranty and book cargo space.
Q:What's the payment term?
A:As normal 30% T/T deposit, 70% T/T before shipment. L/C, other payment term can be negotiated.
Q:May I know how soon I can get the machine after I transfer the deposit?
A:Usually, if the quantity is less than 20 units, we can deliver the machines with 5-10 days. We will try our best to send the machines as soon as possible.
